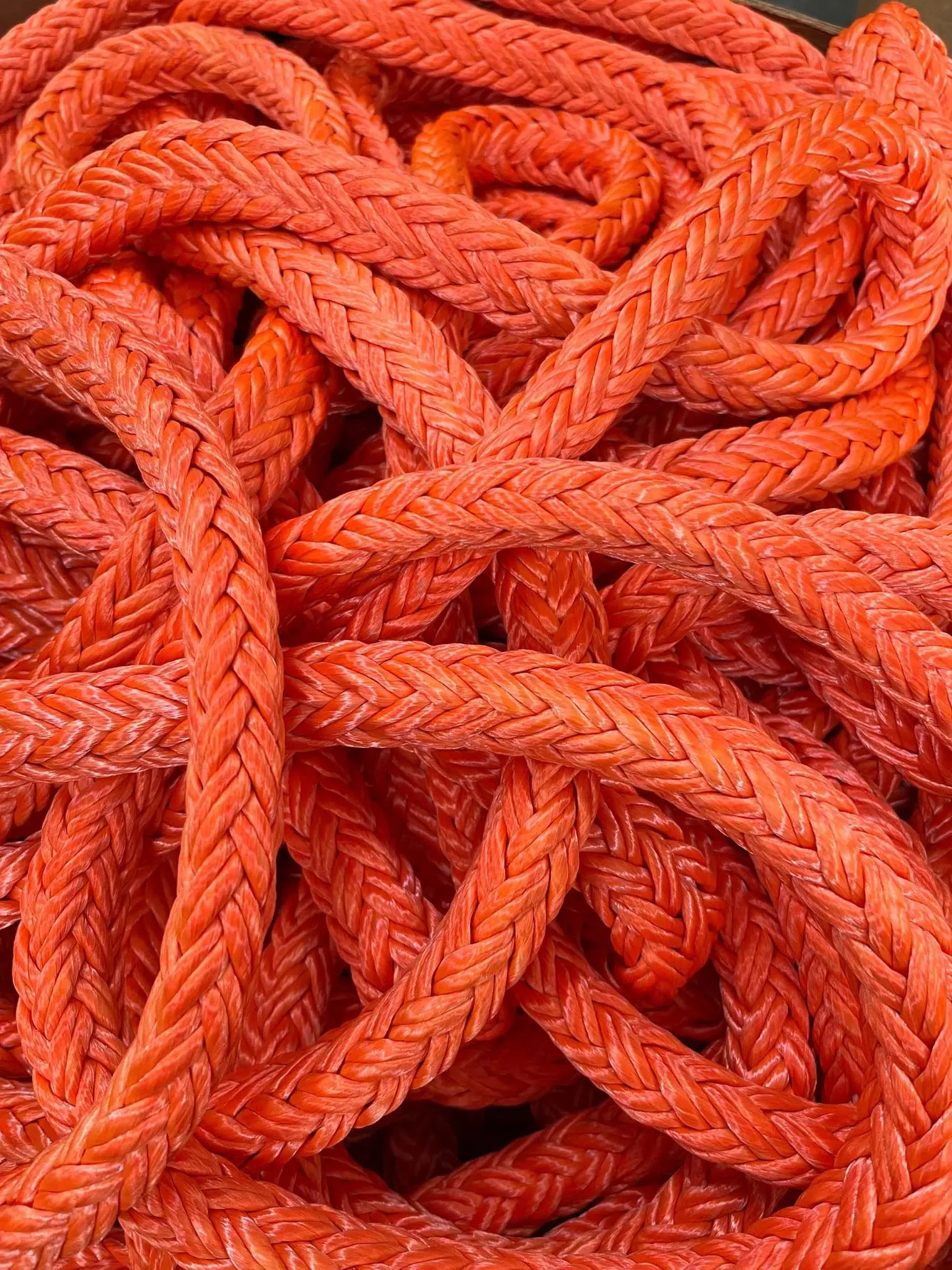

TENEX-TEC
Tenex-TEC is a high-strength, low-stretch rope designed with two ends per carrier. This construction allows for more rope surface conformance to objects being lifted than standard single braid constructions. It is Samthane coated to enhance wear life.
Easy to inspect • Easy to splice • Economical • Excellent abrasion resistance • Firm construction • Good grip • Higher strength per diameter than double braid • Low stretch • Samthane coated • Snag resistant
Sold by the foot
| AT PERCENT OF BREAK STRENGTH | ||
|---|---|---|
| 10% | 20% | 30% |
| ELASTIC ELONGATION | ||
| 1.40% | 2.30% | 3.00% |
| COLOR OPTIONS |
|---|
| DIAM. (INCH) | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1 1/4 |
|---|---|---|---|---|---|---|---|---|---|---|
| CIRC. (INCH) | 3/4 | 1 | 1 1/8 | 1 1/4 | 1 1/2 | 2 | 2 1/4 | 2 3/4 | 3 | 3 3/4 |
| WEIGHT PER 100 FT. (LBS) | 2.2 | 3.2 | 4.3 | 6.5 | 9.2 | 14.8 | 17.7 | 26.7 | 34.7 | 55 |
| AVG. STRENGTH (LBS) | 3,400 | 4,700 | 6,100 | 9,500 | 13,100 | 18,800 | 24,800 | 34,200 | 44,500 | 62,000 |
| MIN. STRENGTH (LBS) | 3,100 | 4,200 | 5,500 | 8,600 | 11,800 | 16,900 | 22,300 | 30,800 | 40,100 | 55,800 |
